Product Description

1.Basic Introduction：

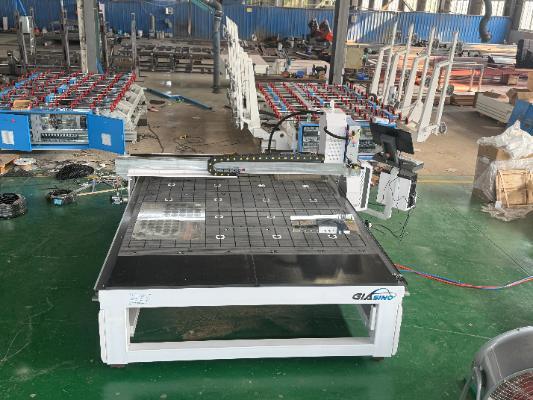

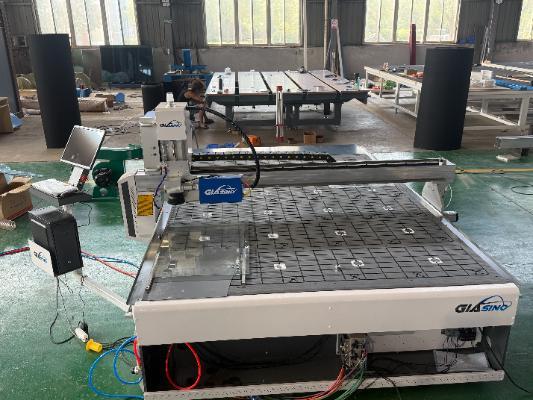

The laser sandblasting machine is the latest high-speed, high-precision mirror laser sandblasting equipment developed by our factory according to the current de velopment needs of the smart mirror industry; this machine is not only suitable for smart mirror laser sandblasting but also suitable for other glass, paint stripping, drilling, and film removal processes. It is also suitable for surface marking of various alloy materials such as stainless steel, alumina, copper, etc

2. Equipment performance characteristics

1.Adopt the latest generation of laser control software, which is simple to operate and powerful.

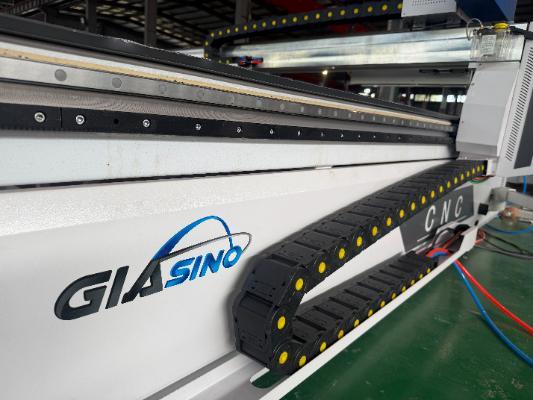

2.The whole machine adopts Yadek linear guide rail, 1400MM length, 1.5 die rack

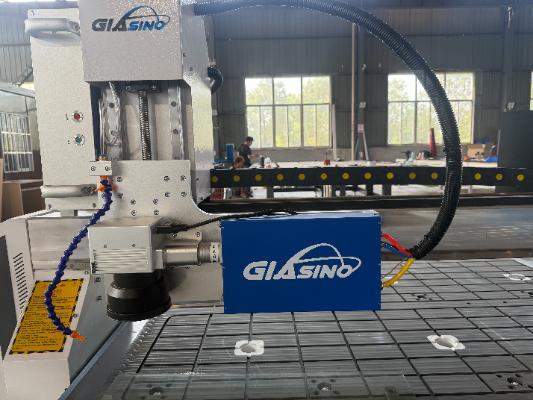

3.The optical path components use high-speed, high-precision 12-spot galvanometer lens and telecentric quartz mirror to form the optical path part.

4.The cooling part uses a dual-temperature dual-control chiller to control the temperature of the laser to ensurethat the equipment can work well for a long time.

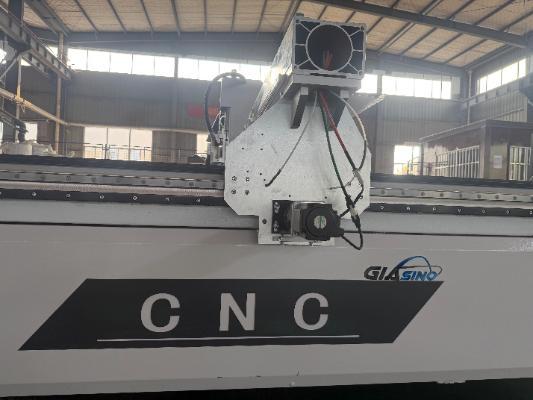

5.The equipment adopts industrial aluminum profile gantry structure, high-strength welded frame, overall stress relief treatment, good rigidity and small deformation.

6.The whole machine is welded steel structure, annealed and processed by 5-axis CNC milling to ensure the overall operation accuracy.

7.The whole machine running parts are all processed by industrial aluminum profile 5-axis machining center to ensure the accuracy of the overall operation of the equipment.

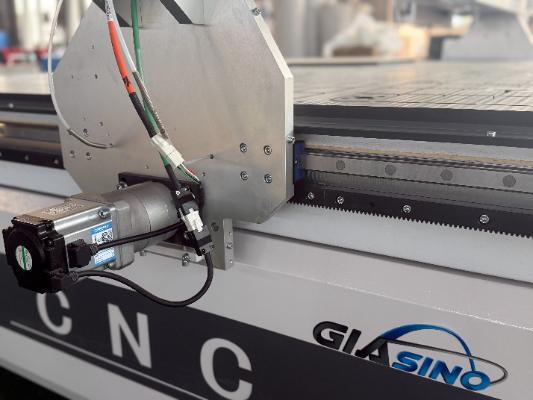

8.Equipped with high-precision servo motor drive and transmission mechanism, high precision, large transmission torque, small transmission error, and good dynamic characteristics.

9.Adopt a new high peak fiber laser (Moke customized model), with a good beam, high power stability, low power consumption, and long life.

10.The Z-axis worktable can be automatically raised and lowered to provide high-quality processing for plates of different thicknesses and materials, with few failure points and high stability.

3.Parameter:

Machine model	C/1325- 140W
Working mode	Fiber Laser
Working size	1300250050MM
Floor space	307726471580MM
Weight	1100KG
Machine technical parameters
Total power	4.5 K W
Laser	High Peak Fiber Laser
Laser power	140W (GLASINO customized laser)
Theoretical life of laser	About 80,000 hours
Optical maser wavelength	1055-1070nm
Engraving range	150*2500mm
Mechanical repeatability	≤±0.25mm
Laser repetition accuracy	≤±0.002mm
Engraving line speed	≤12000mm/s
Motor system	CW laser system (Taiwan)
Smoke exhaust system	High pressure fan flue direct exhaust
Work power	AC190-240V . 50- 60HZ
Work Environment	+5-35℃， Relative humidity 30 - 60%

Name	Brand	Advantages
Laser	Shenzhen Ouling 140W	Theoretical service life is about 80,000 hours
Galvanometer lens	Jinhai chuang	The durability is twice that of ordinary domestic products
Field Lenses & Beam Expanders	Telecentric field lenses
Guide Rails & Slides	Airtca	High hardness, high precision, dust-proof
Other electrical appliances such as switches/filters, etc.
Rack	Made in China, 1.5 die	High hardness and high precision
	rack
Laser control system	730SA-PLUS	Round rectangle adaptive
Cable	Shanghai Cardiff	Special flexible cable
Computer	Laser matched
Servomotor	Taiwan	Dual drive, four motors(three 750W and one 400W)
Crossbeam	Seamless steel	Customized
The machine body	ne-piece welding	After fire aging treatment, it will not be deformed permanently
Oil-water over pressurizer	Manual oil injection system	Manual lubrication to avoid freezing in winter and prolong the service life of the equipment
