Laminated Glass Cutting Machine

GS-LM3826 Automatic Laminated Glass Cutting Machine

Automatic laminating cutting production line：

Equipment Specifications

Ⅰ Equipment dimensions: 7000mm × 5200mm × (900 ± 50mm)

(1) The maximum size of cuttable laminated glass: 3700mm

(2) Minimum size of cuttable laminated glass: 180mm × 180mm

(3) Workbench height: 900mm±50mm

(4) Equipment weight: 4T

(5) Cutting thickness: 3+3mm-10+10mm laminated glass

(6) Film thickness: 0.38-1.52mm (PVB, EVA)

(1) Straight line parallelism: ≤±0.20mm/m

(2) Diagonal accuracy: ≤ ± 0.25mm / m

(1) Installation power requirements: 380V / 50HZ (baseline four lines), special circumstances can be adjusted according to customer requirements

(2) Total power of equipment: 24KW

(3) Compressed air: 0.8MPa (provided by the user)

The Product description

The fully automatic laminated glass cutting machine is a highly efficient and precise cutting machine specially designed for PVB or EVA film laminated glass , which is widely used in building curtain walls, automotive glass, home decoration and other fields.

Product feature：

1. Easy operation, high cutting precision.

2. International standard steel with perfect surface treatment .

3. Key area was annealed and milled, which ensures the high stability and intensity.

4. Cutting and breaking pressure adjustable.

5. Far-infrared heating temperature and heating time adjustable .

6. Machine includes three sections and bridge frame.

7. The first two sections are glass loading and transfer area with auto location system and mechanical location device.

8. The third section has functions of glass stretch and glass break.

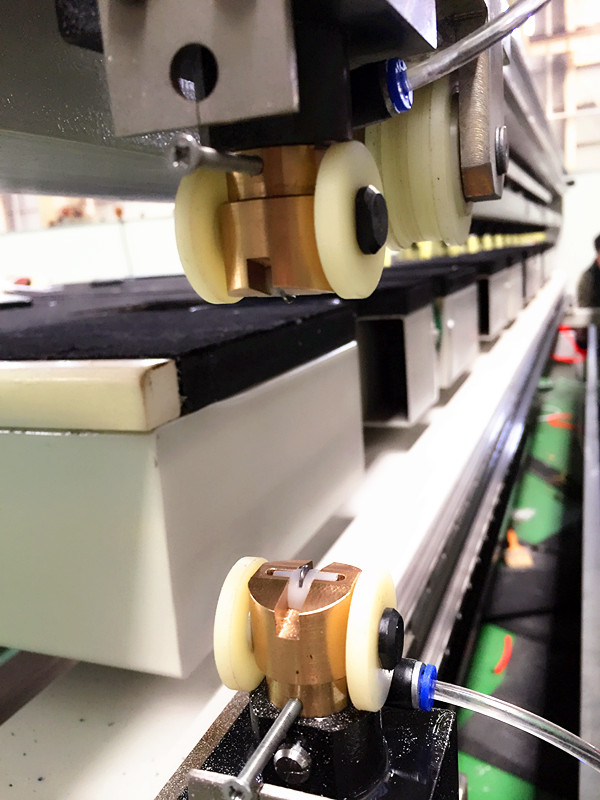

9. Bridge frame is the center of the cutting system, which includes up and down double cutters, upper clamp and film far-infrared cutting.

Technical parameter:

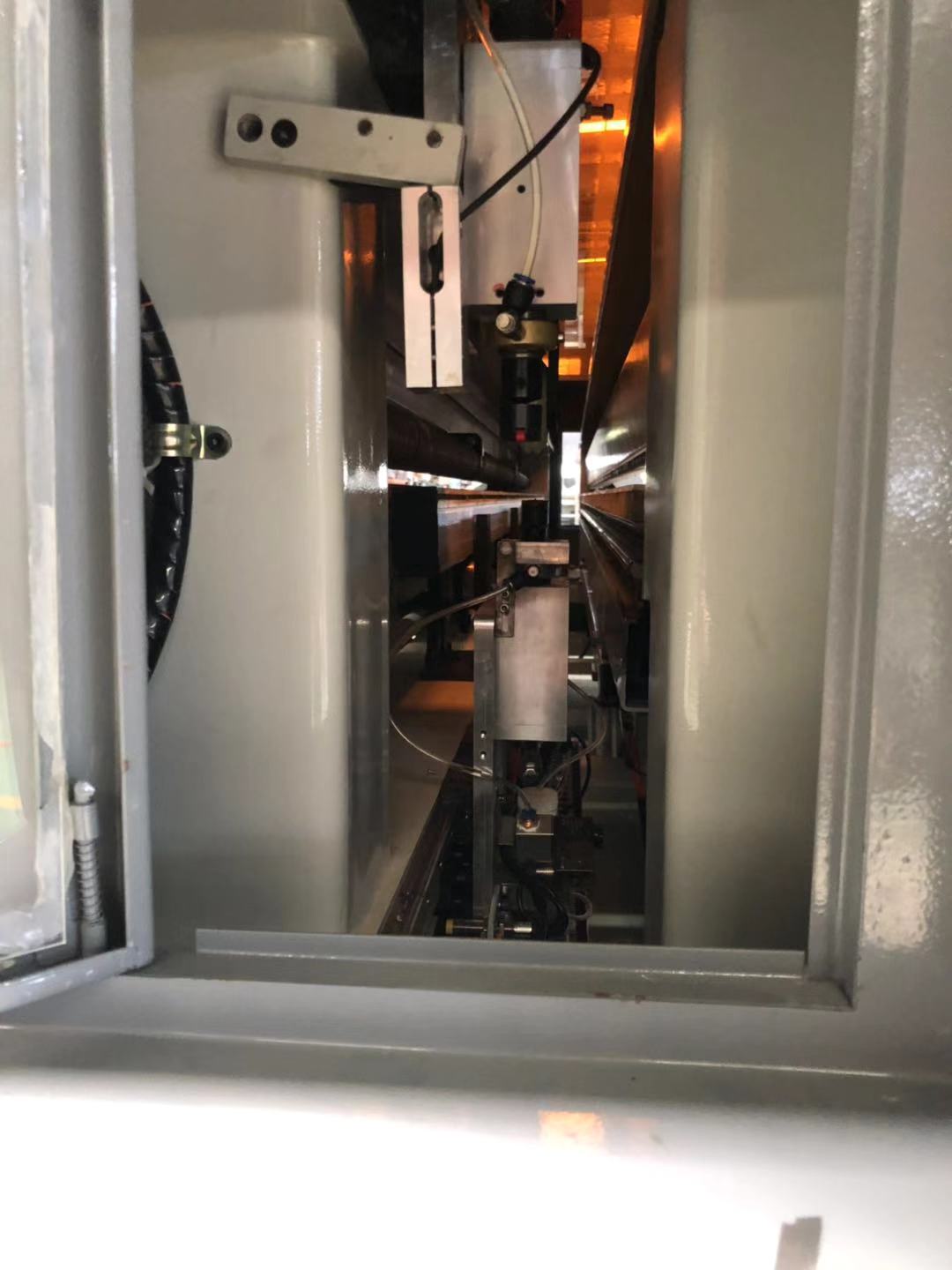

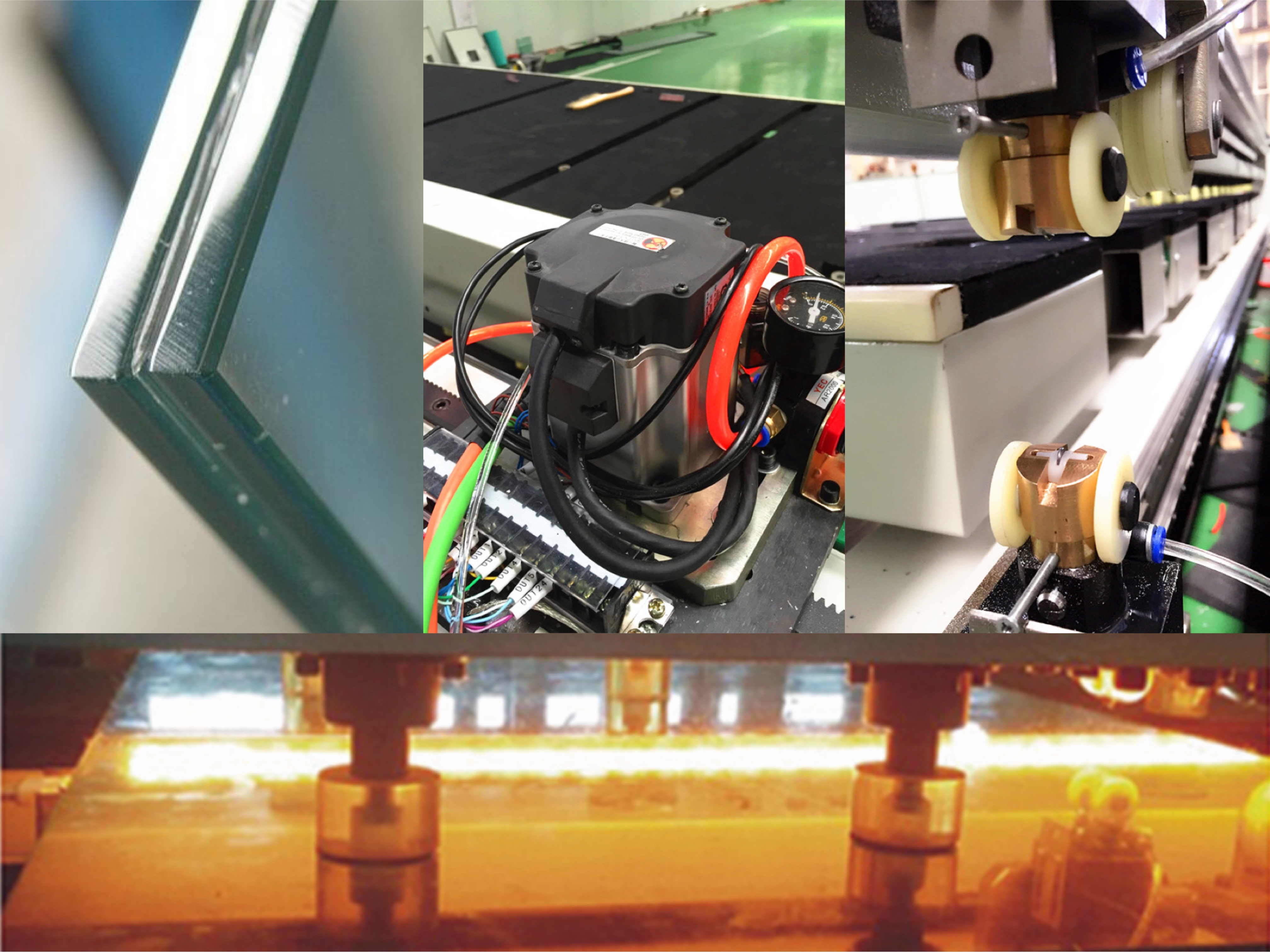

Detailed photos:

Packing & Delivery

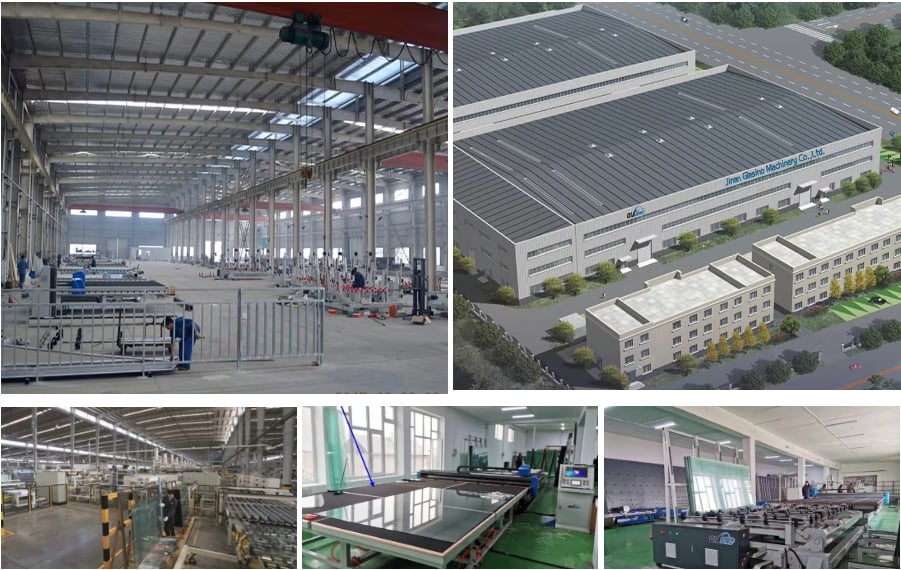

Company Profile
