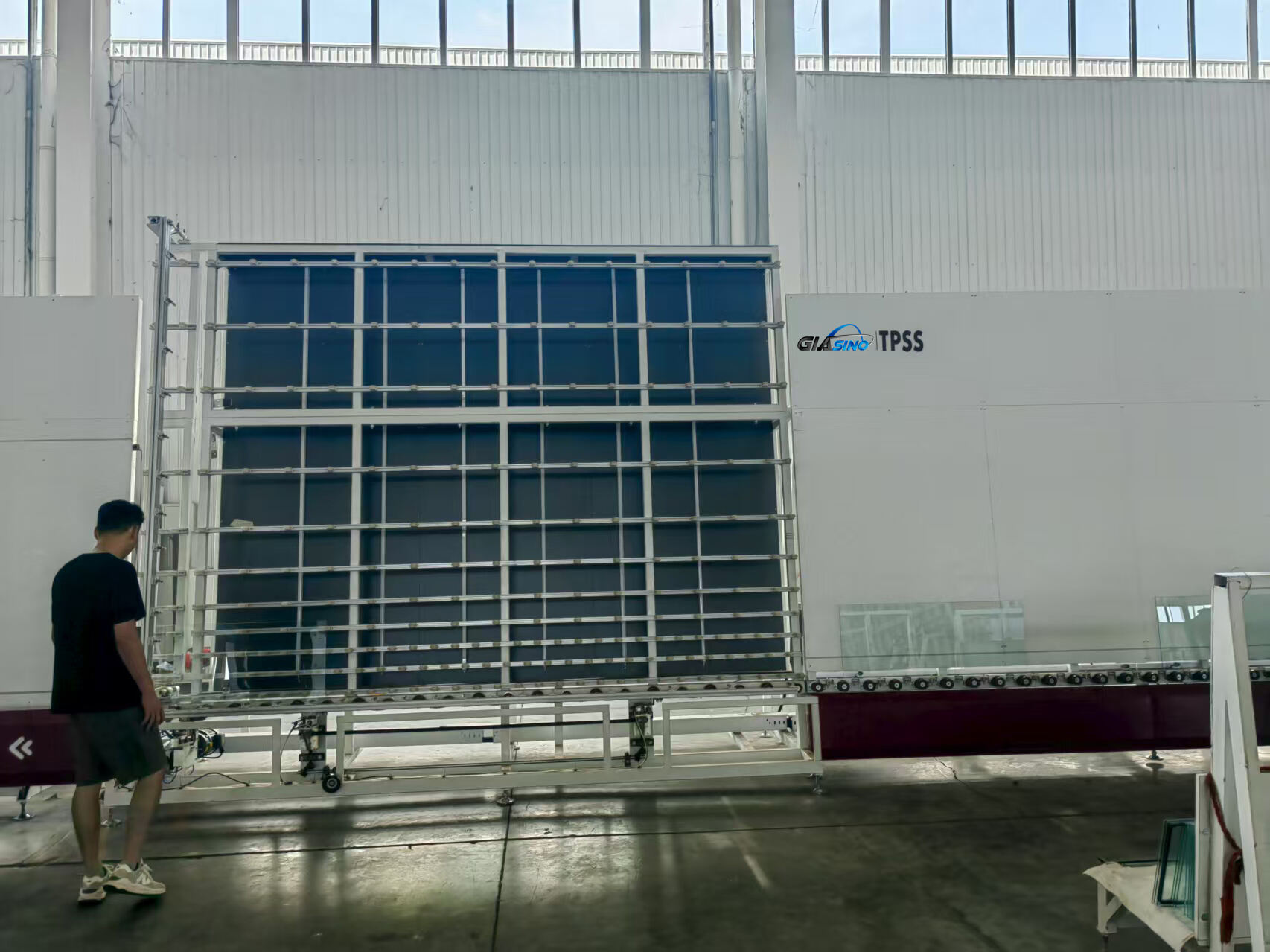

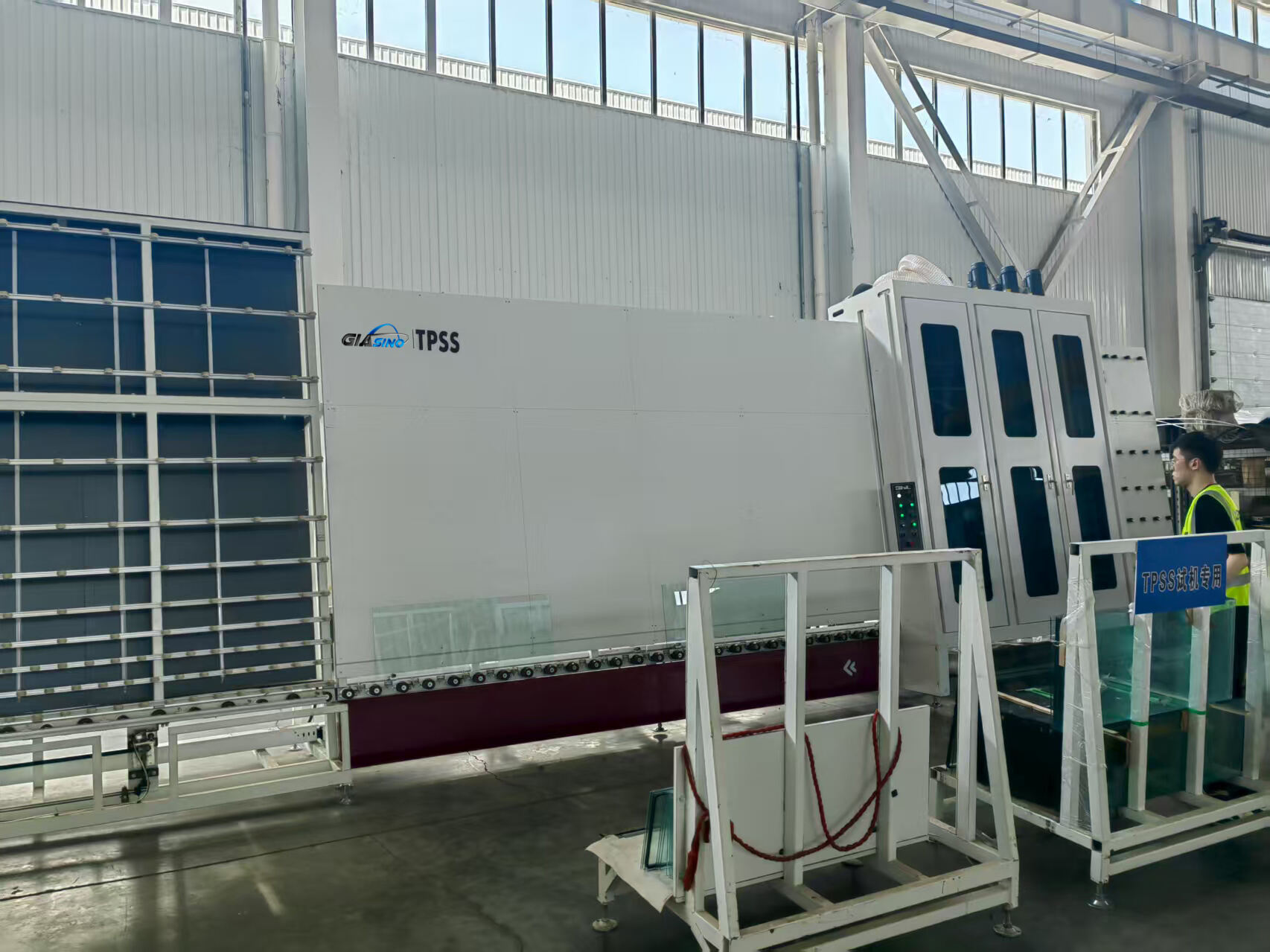

Automatic TPSS Insulating Glass Production Line

Features:

1) Perfect shaping of corners and edges

2) Accurate flow control

3) Real-time control via touch screen

4) Accurate glass delivery using flat belt conveyor

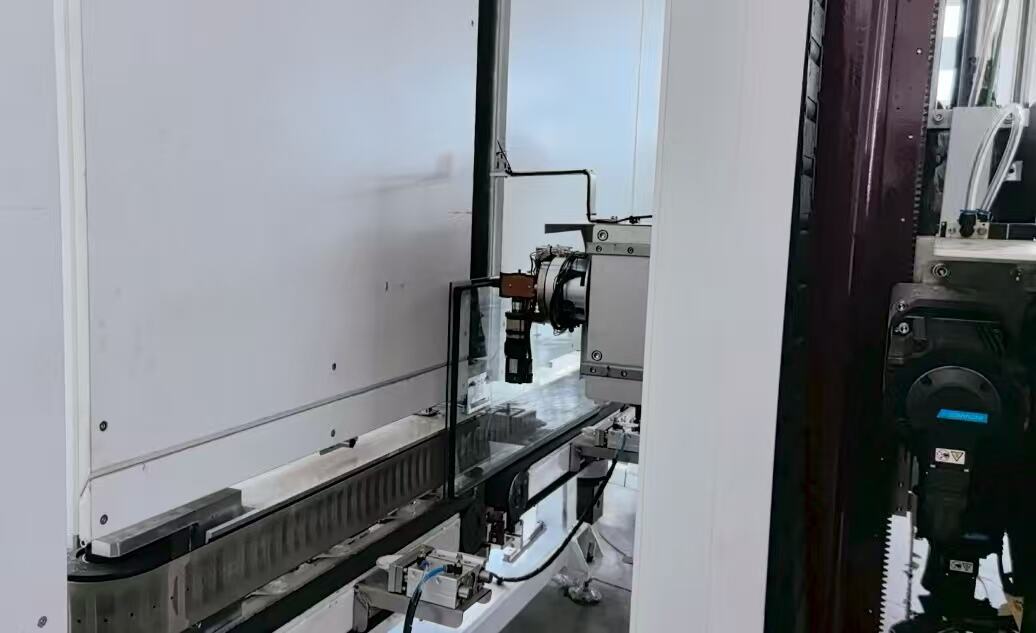

5) Automatic adjustment of sealing amount via servo control installed in nozzle

6) Self-diagnosis and alarm function

7) Accurate glass delivery using high-precision linear guides

8) Shape pattern

Overview

1. Fully intelligent touch human-machine interface, simple and convenient operation. Suitable for large-scale glass deep processing enterprises, reducing production labor intensity, saving manpower, and improving production efficiency.

2. The compact layout occupies a small space, and is horizontally transported with the production line, with high speed, stability and safety.

3. The servo control system adopts a world-renowned brand with stable performance.

4. The gluing station adopts synchronous belt transmission to ensure smooth glass transportation and accurate positioning.

5. Air flotation is used to convey glass to avoid wheel marks on the glass surface.

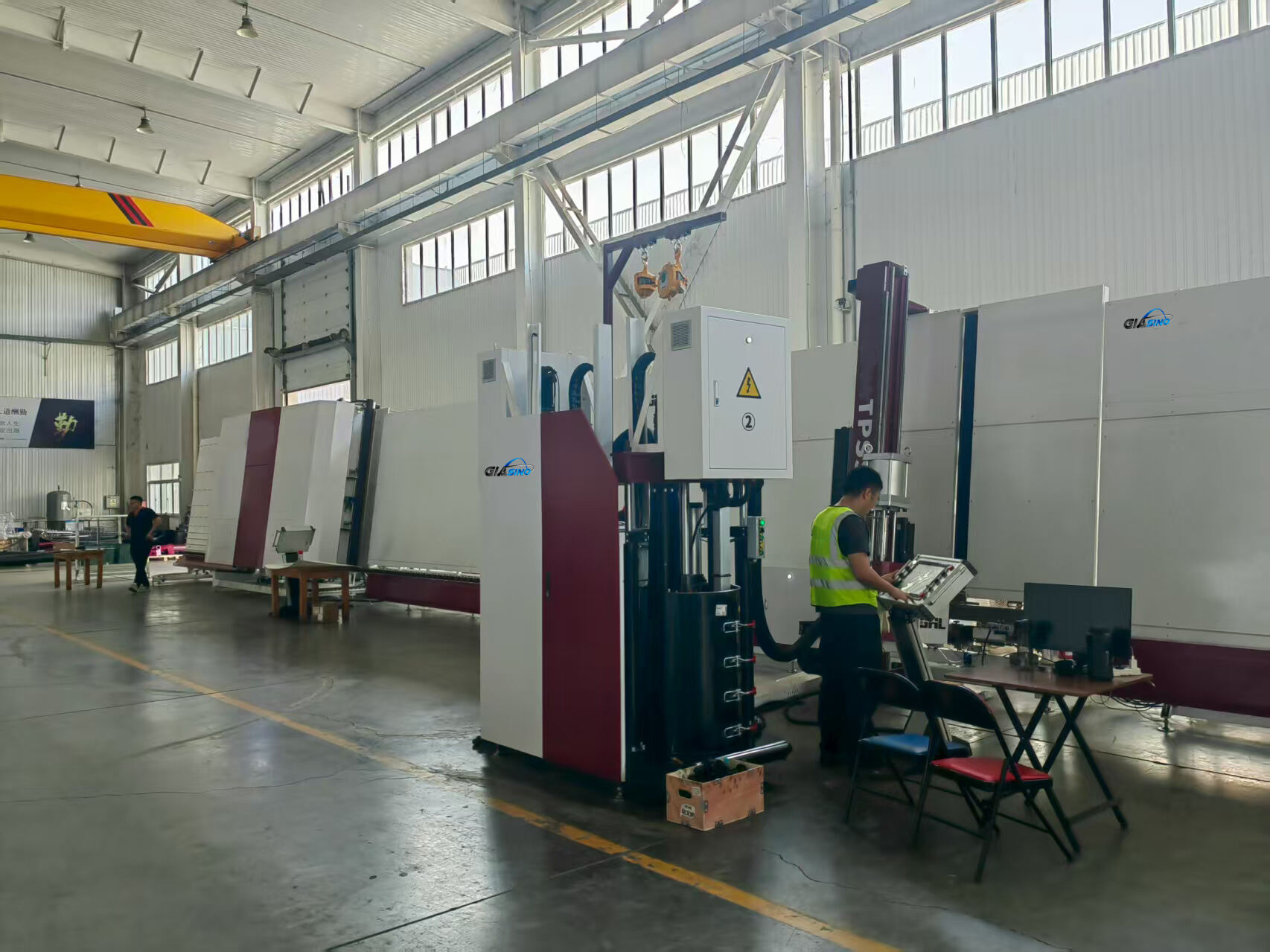

6. The double glue barrel series glue supply solution is adopted, and the equipment does not need to be stopped during the glue change process.

7. The glue barrel pressure plate and glue supply pump are equipped with a one-button automatic exhaust mechanism, which is convenient to operate, saving time and effort.

8. The TPSS glue strip is full, the corners are smoothly transitioned, and the surface is flat.

9. The key components of the equipment are made of special materials and have undergone strict heat treatment processes. The equipment operation is stable and reliable, and the service life is long.

10. The glue nozzle is made of high-performance materials and is precisely processed by a high-precision CNC machining center. It uses heat treatment processes such as quenching and tempering, and is electroplated with a wear-resistant coating to ensure the working accuracy and service life of the glue nozzle.

11. The key frames and columns of the equipment have all adopted strict thermal aging stress relief treatment and have been precisely processed by CNC milling machines to ensure that the equipment structure is stable and reliable without deformation.

12. The equipment parts adopt standardized and modular design to reduce the difficulty of operation and maintenance, and ensure the long-term and stable use of the equipment.

Technical Parameters
