Aluminum profile intelligent sawing center

Main Feature

1. This machine is suitable for efficient sawing and processing of aluminum door and window profiles, and can simultaneously perform sawing and processing of profiles at 45 °, 90 °, and 45 ° and 90 ° combination angles. The innovation of sawing unit structure saves processing time, reduces processing errors and wear.
   2. Configure the German PA industrial CNC control system, provide remote assistance, and support the integration of domestic and foreign door, window, and curtain wall system software such as Klaes, Chuanggao, Dutu, Xinger, and Xuge in Germany.

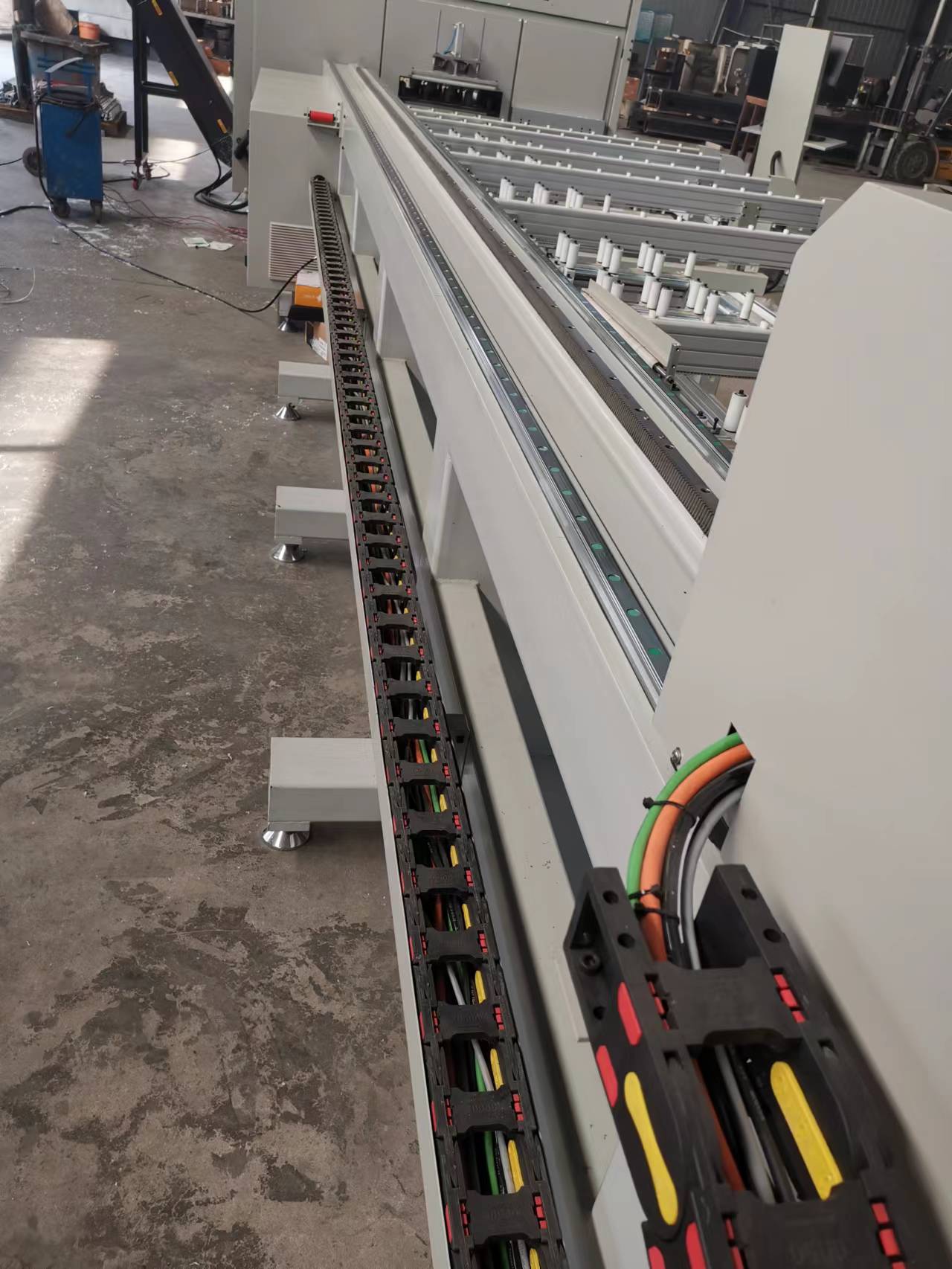

   3. A stable high-precision bed body, which has undergone aging treatment, has a reasonable structural design, and is easy to operate.

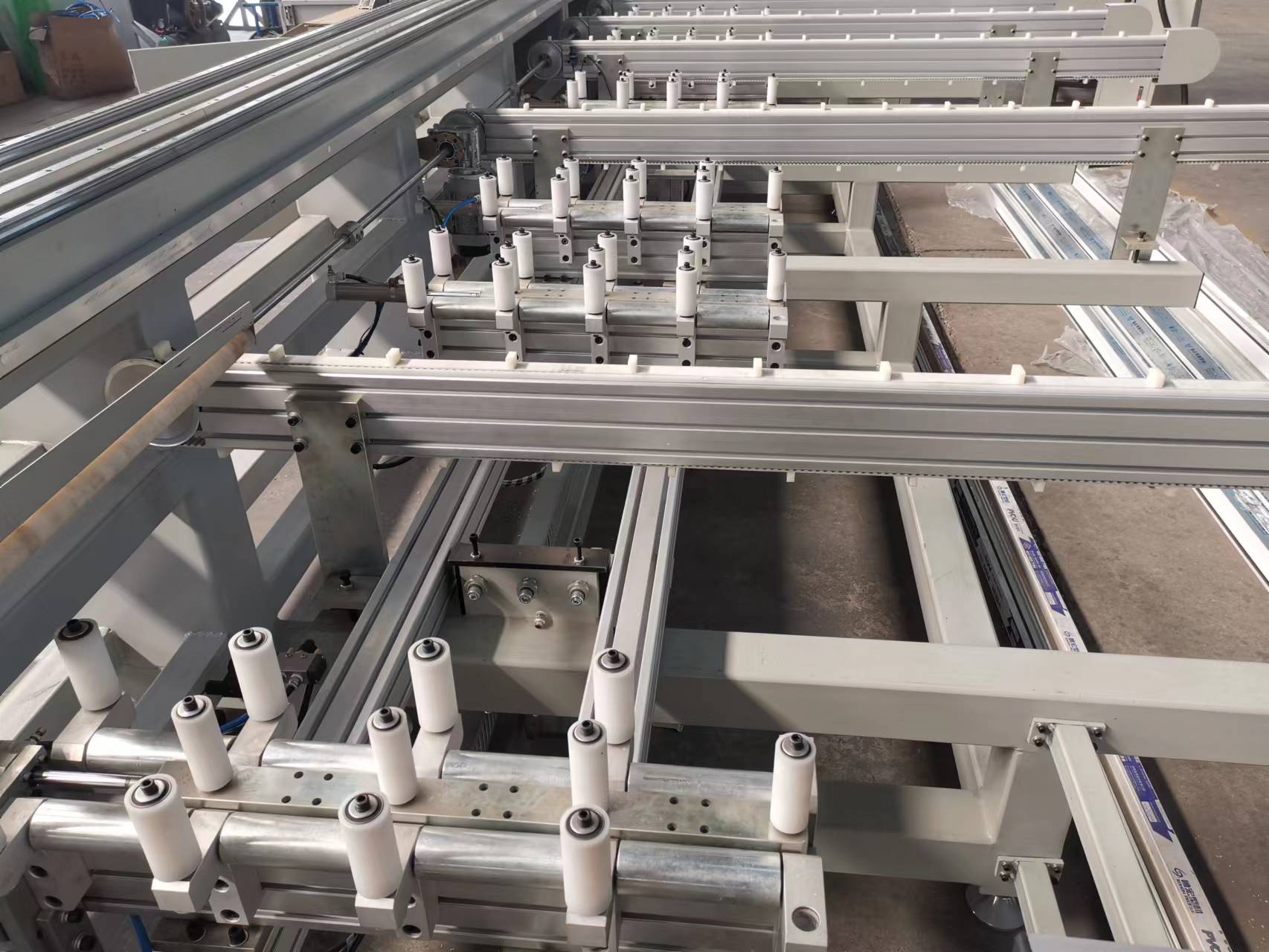

   4. The feeding and discharging system is fully servo controlled, fast and accurate, equipped with a standard clamping system. The intelligent robotic arm automatically rotates 0-360 ° to clamp profiles at any angle, which can meet the clamping and feeding needs of various profiles.
   5. High quality feed servo motors, ball screws, linear guide pairs, and bearings are used to ensure that the equipment has high machining accuracy, stability, and reliability.

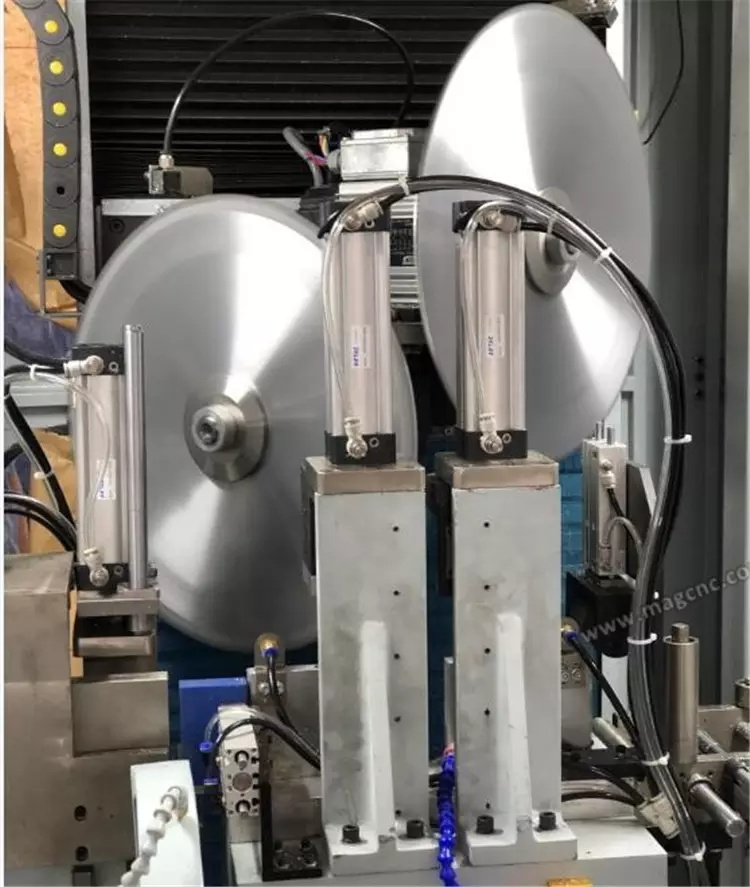

   6. The high-precision spindle motor is directly connected to the saw blade, ensuring smooth cutting and high processing accuracy. The saw blade is controlled by a vertical servo motor for cutting, with controllable stroke, high efficiency and stability, and is not affected by external environment. The saw blade separates from the cutting surface of the profile when returning, effectively avoiding back sweeping of the material, ensuring smooth cutting and high processing accuracy.
   7. Innovation in cutting unit structure, continuous feeding without pulling action, saving time and reducing errors and wear.
   8. The entire cutting process only requires a single person to operate, which is efficient, simple, and fast.
   9. The whole machine is equipped with pneumatic and electrical protection devices, as well as mechanical protection devices, to ensure safe production.
   10. Equipped with a barcode printer, it can print material identification in real time, achieve process information identification, facilitate material management, and connect with enterprise ERP management software.
   11. Equipped with a waste output device, it eliminates the accumulation of waste materials causing site pollution and improves the production environment.

   The main electrical appliances of the equipment Component Configuration Table

   Serial number	name	model	brand	remarks/place of origin
   1	Control System	DO401	HANS PA	Germany
   2	servo drive motors	0.75KW/0.5KW	INOVANCE	Shenzhen
   3	spindle motors	3KW	SEIMEC	Italy
   4	VFD	TO0.7B	INOVANCE	shenzhen
   5	sensor	PSE17	AUTONICS	Korea
   6	reducer	VRSF-10C	SHIMPO	Japan
   7	Display Screen	21 inch	PHILIPS	Philips
   8	Guideway	25/20	HIWIN	Taiwan, China
   9	Rack	020-10	PC/YYC	Taiwan, China
   10	Screw	25/20	TBI	Taiwan, China
   11	Electrical components	IC65N	SCHNEIDER	France
   12	Solenoid valve	24V	AirTAC	Taiwan, China
   13	Trachea	PU tube	Morita	Taiwan, China
   14	Joint Φ 8	Φ8	ISAIAH	Zhejiang
   15	Oil water separator	AL3000-03	HSANWO	Zhejiang
   16	Saw blade	Φ550mm	Nanjing Laide	diamond saw blade
