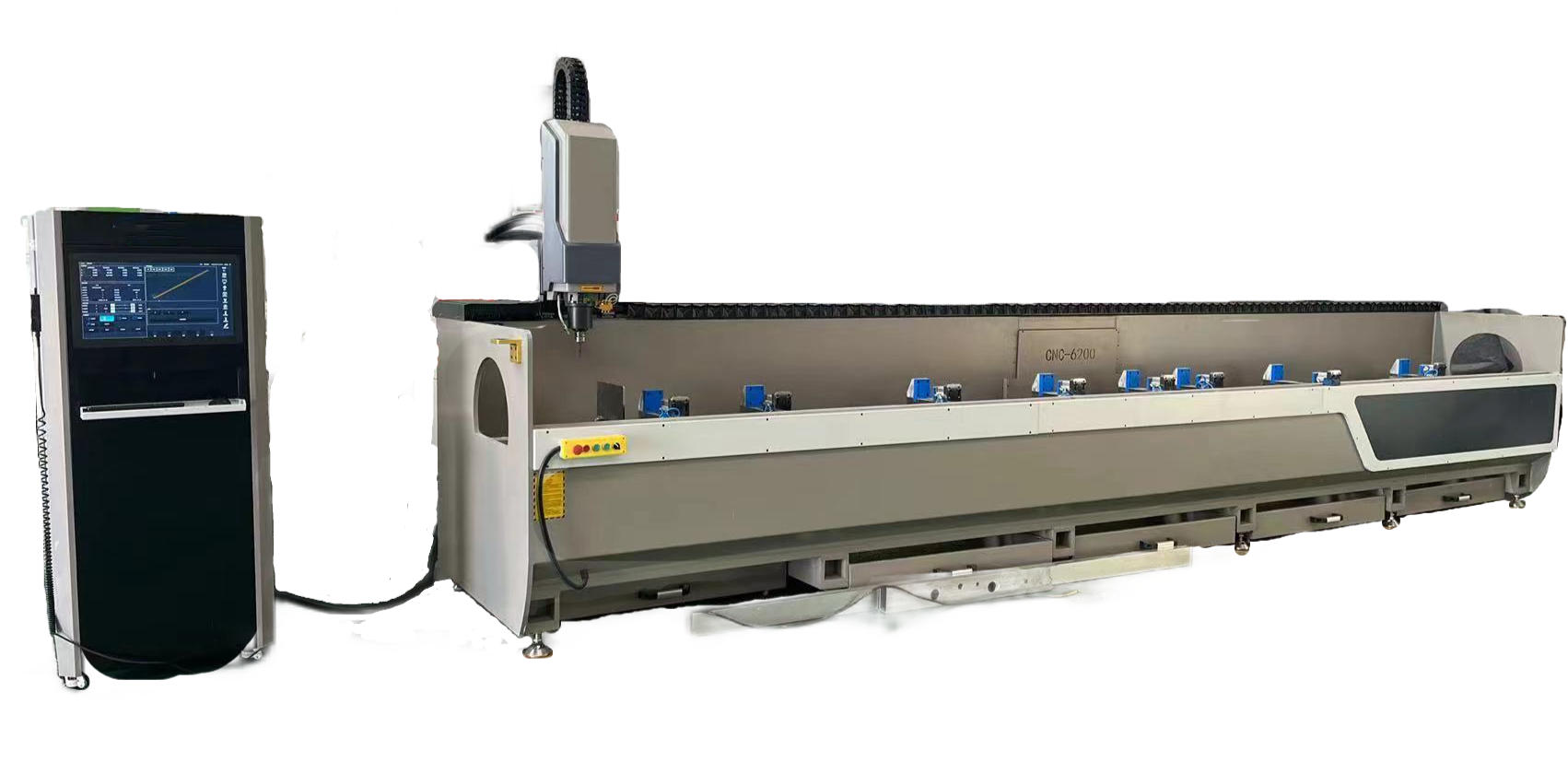

6000mm Aluminum Profile Cnc Milling And Drilling Machining Center

Machine introduction:

1. It is suitable for drilling, milling, tapping, round hole, special-shaped hole and plane carving of aluminum alloy profiles;

2. It Adopts PA CNC system,which makes sure smooth running of machine.LoadingLoading

3. Electrical spindle is Italy brand air cooling 9KW, ATC, 18000r/min.

4. Imported Taiwan Italy guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine .

5. CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.

6. Adopt auto oil supply system, blades adopt system control spray cooling device.

7. The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

8. The main components adopt steel structure and they are all through aging treatment.

9. Effective processing width: 300mm;

10. Adopt 6 sets tool magazine, can change different tools automatic.

Technical parameter：

Machine Configuration：

More pictures of machine for your reference: Working samples
